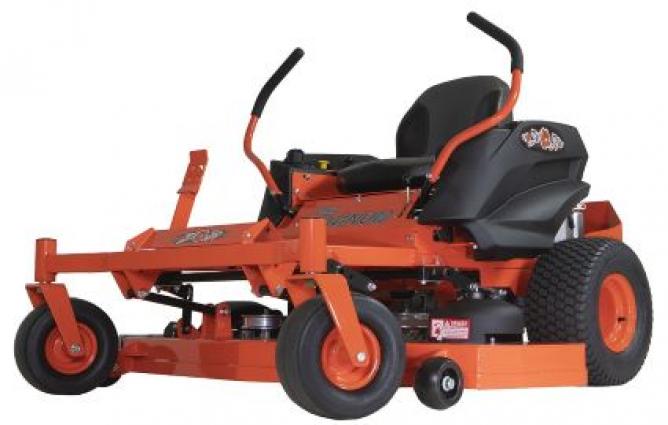

MAGNUM 54" 726cc KAWASAKI FR
no reviews for this product. Login to place a review.
Most mowers at this price are made from flimsy stamped steel and bolted together. So if you're looking for the efficiencies of a zero-turn mower at a price that does not compromise on quality construction and quality of cut - turn to the MZ Magnum.
With its all new, larger and stronger frame - sporting an even stronger 7-gauge all-steel, fabricated deck - the MZ Magnum is far more substantial in build quality than other mowers in this price range. You'll immediately appreciate the rock-solid, all-steel welded construction, powerful engine and 'too much fun to call it work' ride.
MOWER SPECIFICATIONS
Cutting Width: 54"
Cutting Height: 1.5" - 4.5" with Deck Height Control System
Blades: 5400 - 7/32" x 2 1/2" x 18 1/2", High Lift, Heat Treated
Lift and Height Adjustment: Foot-Assist Lift
Electric Lift Optional: Deck Dial
Blade Belt: Single V-Belt Spring Tension
Anti-Scalp Rollers: 2 Total (2 Front)
Deck Flotation: Floats On Four 1/4" Deck Hangers
Deck Thickness: 3/16" Thick Solid Steel
ENGINE SPECIFICATIONS
Gross Horsepower/cc: 726cc Kawasaki FR651V
Cylinders: 90 Degree V-Twin
Displacement: 726cc
Maximum Torque: 40 ft. lbs. @ 2,600 RPM
Fuel Requirement: Unleaded Gasoline (87 Octane or Higher)
Fuel Capacity: 5 Gallons
Fuel Filter: Replaceable Automotive Type
Cooling System: Air-Cooled
Ignition: Electronic
Starter: 12 Volt
Charging System: 16 Amp
DRIVE SYSTEM SPECIFICATIONS
Transmission: Dual Integrated Hydrostatic Transaxle
Pump Drive: Integrated Axial Piston Pump & Motoro w/Gear Reduction
Wheel Drive: Integrated with Gear Reduction
Hydrostatic System Oil: 20W50 Motor Oil
Pumps (2): EZT Integrated Unit
Hydraulic Coolers (2): 7" Cooling Fan per Unit
MOWER DIMENSIONS
Weight: 696 lbs.
Overall Height: 42"
Overall Width (Chute Up/Chute Down): 58" / 67"
Overall Length: 76"
Tire to Tire Width: 46"
Tires - Front: 11 x 6.0 - 5 Smooth Tread
Tires - Rear: 18 x 9.5 - 8 Turf Tread
Steering: Dual Lever Steering, Independent Control
Turning Radius: Zero Turn - Zero Degrees, Turns Within Unit Length
Ground Speed (forward): Up To 6 mph
Parking Brake: External Cogg Brake
* Financing available depending on credit. Above price does not include financing fees and taxes. See store for details. *
- MSRP
- $4,269.00
- U/M
- / EA
- Price
- $4,019.00
- Part Number
- 86634
- Manufacturer
- BAD BOY, INC.
- Quantity Available
-
- Feldmans Blue Springs
- Contact store for availability.
- Feldmans Bonner Springs
- Contact store for availability.
- Feldmans Liberty
- Contact store for availability.
