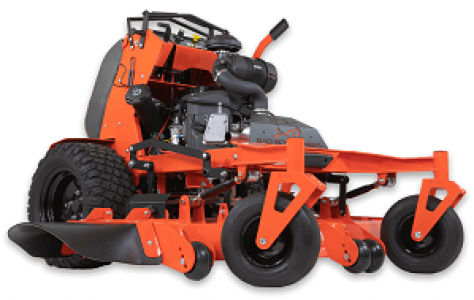

REVOLT 48" KAWA 23.5 HP
no reviews for this product. Login to place a review.
The totally redesigned Revolt Stand-On Commercial Zero Turn Mower has been improved in every way and features improved performance, operator ease-of-use and durability. Operator visibility is improved with new, shorter frame and curved iBeam front fork support.
The rear tires are larger and the fuel tank is now located in the center of the machine. This allows the rider to stand directly between both rear tires, resulting in a lower center of gravity and making the Revolt Stand-On Zero Turn Mower one of the most maneuverable and balanced Stand-On Mower's in the industry. So even though we've managed to make it smaller, we've packed in bigger performance all the way around.
Mower Specifications
Cutting Width -4800 - 48"; 5400 - 54"
Cutting Height -2" 0 5" In 1/4" Increments
Blades -4800 - 1/4" x 2 1/2" x 16 1/2", High Lift, Heat Treated
5400 - 1/4" x 2 1/2" x 18 3/4", High Lift, Heat Treated
Lift and Height Adjustment -Manual Quick-Adjust Setting with Hand Lever Blade Belt -Single V-Belt Spring Tension
Anti-Scalp Rollers -5400 - 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels)
Deck Flotation -Floats On Four 1/4" Deck Hangers
Deck Thickness -3/16" Thick Solid Steel With Additonal 1/4" Steel Leading Edge And 3/8" Side Trim
Engine Specifications
Gross Horsepower/CC -726cc (23.5hp) Kawasaki0 FX
Cylinders 090 Degree V-Twin
Displacement 0726 cc; 726 cc
Maximum Torque 039.9 ft. lbs. @ 2,400 RPM
Fuel Requirement 0Unleaded Gasoline (87 Octane or higher)
Fuel Capacity -6.5 Gallons
Fuel Filter -Replaceable Automotive Type
Cooling System -Air-Cooled
Ignition -Electronic
Starter -12 Volt
Charging System -20 Amp
Drive System Specifications
Transmission 0Industrial Grade Dual Integrated Hydrostatic Transaxle
Pump Drive 0Integrated Axial Piston Pump & Motor w/Planetary Gear Reduction Wheel Drive Hydro-Gear- Integrated 3400 Series Transaxle
Hydrostatic System Oil 20W50 Motor Oil
Hydraulic Filter 0Internal, Replaceable, 1 Per Axle
Pumps -
Hydraulic Coolers- 8" 3,600rpm Cooling Fan; One Per Unit.; 8" 3,600RPM Cooling Fan; One Per Unit
Mower Dimensions:
Weight -4800 - 905 lbs.;
Overall Height-48"
Overall Width
Chute Up/Chute Down -4800 - 50 1/2"/62 1/2"; 5400 - 56 1/2" / 68 1/2" Overall Length 063"
Tire to Tire Width 04800 - 43 1/2"; 5400 - 43 1/2"
Tires - Front -13 x 6.5 - 6 Smooth Tread
Tires - Rear -23 x 9 - 12 Reaper Tires
Steering -Dual Lever Steering, Independent Control
Turning Radius -Zero Turn - Zero Degrees, Turns Within Unit Length
Ground Speed (forward) -Up To 10 mph
Parking Brake -Internal Parking Brake
**See Warranty Policy for specific component coverage. Certain limitations apply.
