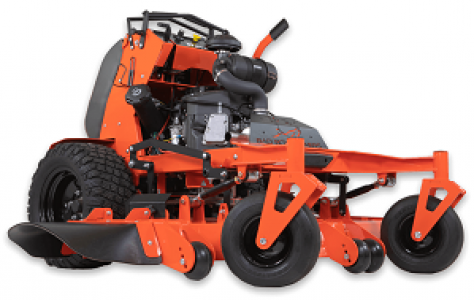

REVOLT 54" KAWA 27 HP
no reviews for this product. Login to place a review.
We created a mower in a class by itself - a commercial-grade mower with Integrated Drive Systems featuring our patented EZ-Ride0 System-at a breakthrough price! With independent front and rear suspension, the Maverick glides over uneven terrain - and through a price point other mower manufacturers thought impossible.
With a lower profile and wider stance, we've increased traction and even added our new DeckDial for precise cutting height. Packed with popular high-performance engines-It delivers all the power to bear on whatever you're mowing.
Mower Specifications:
Cutting Width - 4800 - 48"; 5400 - 54"; 6000 - 60"
Cutting Height - 1.5" - 4.5" with Deck Height Control System
Blades- 4800 - 1/4" x 2 1/2" x 16 1/2", High Lift, Heat Treated
5400 - 1/4" x 2 1/2" x 18 3/4", High Lift, Heat Treated
6000 - 1/4" x 2 1/2" x 20 1/2", High Lift, Heat Treated
Lift and Height Adjustment -Foot-Assist Manual lift with Dial-Style height adjustment.
Optional electric lift
Blade Belt-Single V-Belt Spring Tension
Anti-Scalp Rollers -4800 - 4 Total (2 Front, 2 Rear)
5400 - 4 Total (2 Front, 2 Rear)
6000 - 6 Total (4 Front, 2 Rear)
Deck Flotation -Floats On Four 1/4" Deck Hangers
Deck Thickness -3/16" Thick Solid Steel
Engine Specifications
Gross Horsepower/CC -747cc Air-Cooled Kohler-Confidant
Cylinders -V-Twin
Displacement -747 cc
Maximum Torque -42.4 ft. lbs. @ 2,600 RPM
Fuel Requirement 0Unleaded Gasoline (87 Octane or higher)
Fuel Capacity -6.5 Gallons
Fuel Filter -Replaceable Automotive Type
Cooling System -Air-Cooled
Ignition -Electronic
Starter -12 Volt
Charging System -20 Amp
Drive System Specifications
Transmission -Hydro-Gear- ZT-3200 Dual Integrated Hydrostatic Transaxle Pump Drive -Integrated Axial Piston Pump & Motor w/Gear Reduction
Wheel Drive -Integrated With Commercial Grade Gear Reduction
Hydrostatic System Oil -20W50 Motor Oil
Hydraulic Filter -25 Micron, Replaceable Spin-On Type, 1 Per Pump
Pumps -10cc Pump And Motor Integrated In One Unit
Hydraulic Coolers 7" RPM Cooling Fan; One per unit
Mower Dimensions
Weight -4800 - 862 lbs.; 5400 - 871 lbs.; 6000 - 925 lbs.
Overall Height -49"
Overall Width- 4800 - 54" / 61"; 5400 - 58" / 67"; 6000 - 64" / 73"
Chute Up/Chute Down
Overall Length -75"
Tire to Tire Width -46 1/2"
Tires - Front -13 x 6.5 - 6 Smooth Tread
Tires - Rear -4800 - 23 x 8.5 - 12 Turf Tread; 5400 - 23 x 10.5 - 12 Turf Tread; 6000 - 23 x 10.5 - 12 Turf Tread
Steering -Dual Lever Steering, Independent Control
Turning Radius -Zero Turn - Zero Degrees, Turns Within Unit Length
Ground Speed (forward) -Up To 9 mph
Parking Brake -Internal Parking Brake
**See Warranty Policy for specific component coverage. Certain limitations apply.
- MSRP
- $7,649.00
- U/M
- / EA
- Price
- $7,149.00
- Part Number
- 48808
- Manufacturer
- BAD BOY, INC.
- Quantity Available
-
- Feldmans Blue Springs
- Contact store for availability.
- Feldmans Bonner Springs
- Contact store for availability.
- Feldmans Liberty
- Contact store for availability.
